View from my side
The bottom one
|
|
View from my side |
|
So today, 19-3-2005, the triple is ready, after work from Mattie Kop who made the steering stem, and agian a lot of work from Martijn Bogers. | |
|

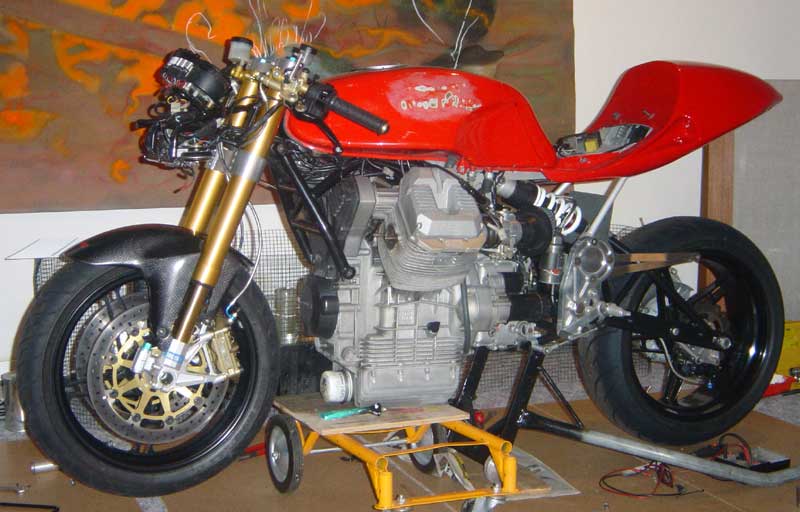

So this is the way it's going to be, waiting for the ISR calipers, I mounted the brembo's | |
|

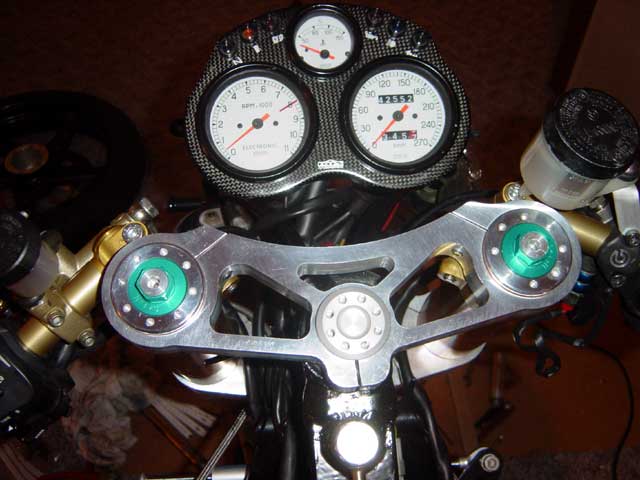

So today almost finished. Some small things to do. Next week ready. | |
|
||
|
The top was made this week ( march 2005), almost ready. | |
The bottom one |
||
|
After doing some homework and a bit thinking, I drew this in Solidworks. | |
|

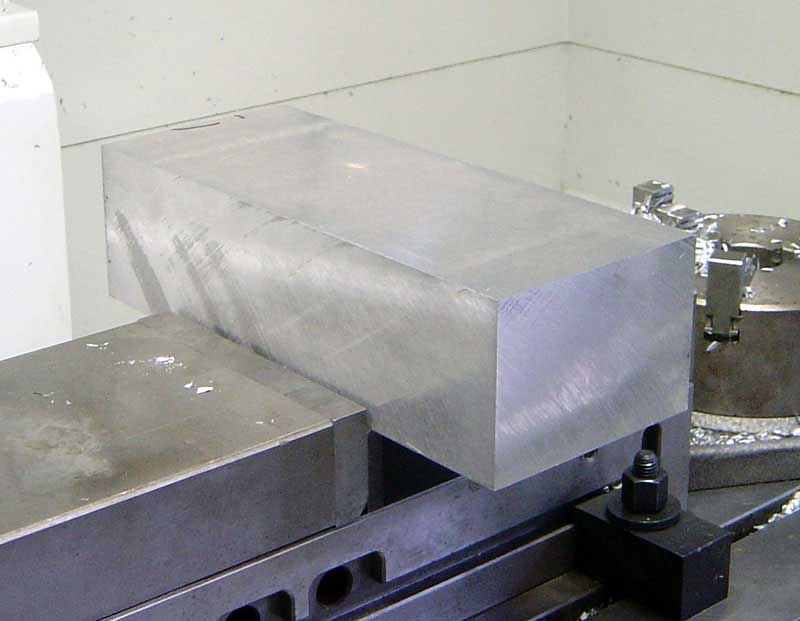

So we start with 7Kg of aluminium | |
|

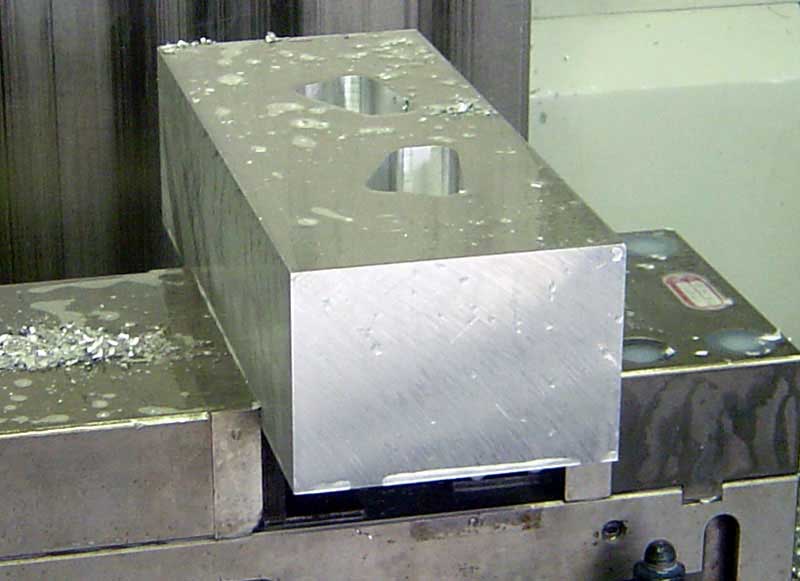

Made 2 holes in it | |
|
||
|
and some more | |
|

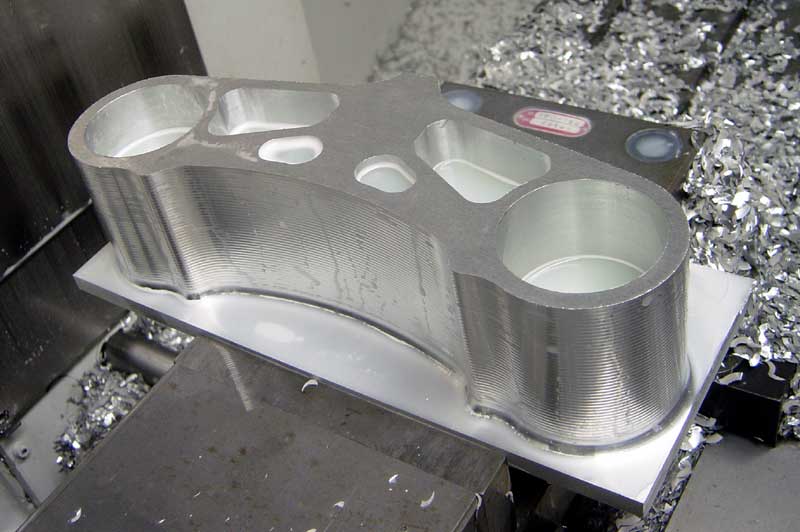

Now the first contour can be seen | |
|
||
|
||
|

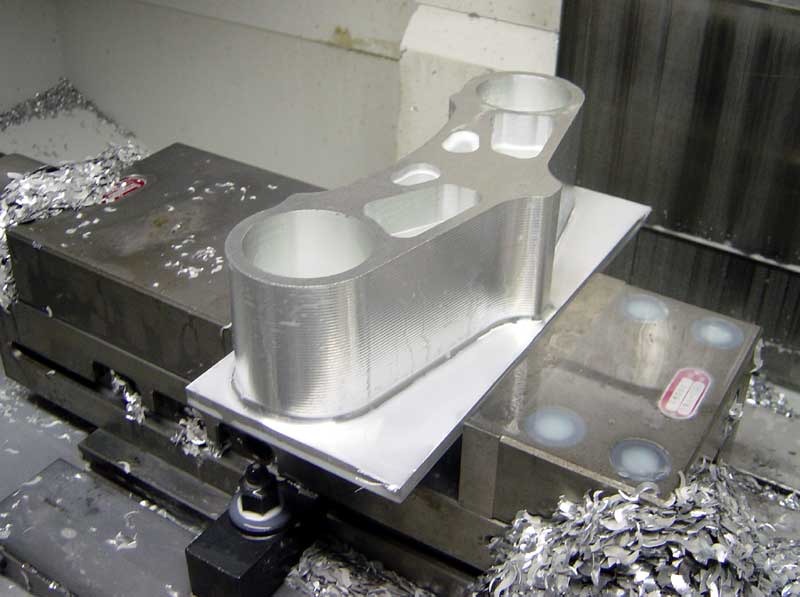

All is now only rough, the finishing( another milimeter goes away) has to be done. | |
|

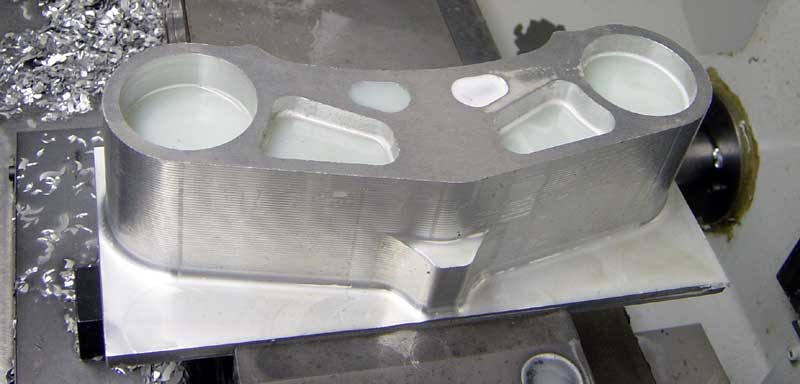

At the end of this day 2600 grams are left from the 7000 grams | |
|
Today, 9-12-2004, conventional milling was done, first the round shape at the bottom | |
|
Then the holes for the fork legs were precision machined, and the center hole made to the right size | |
|
result for today | |
